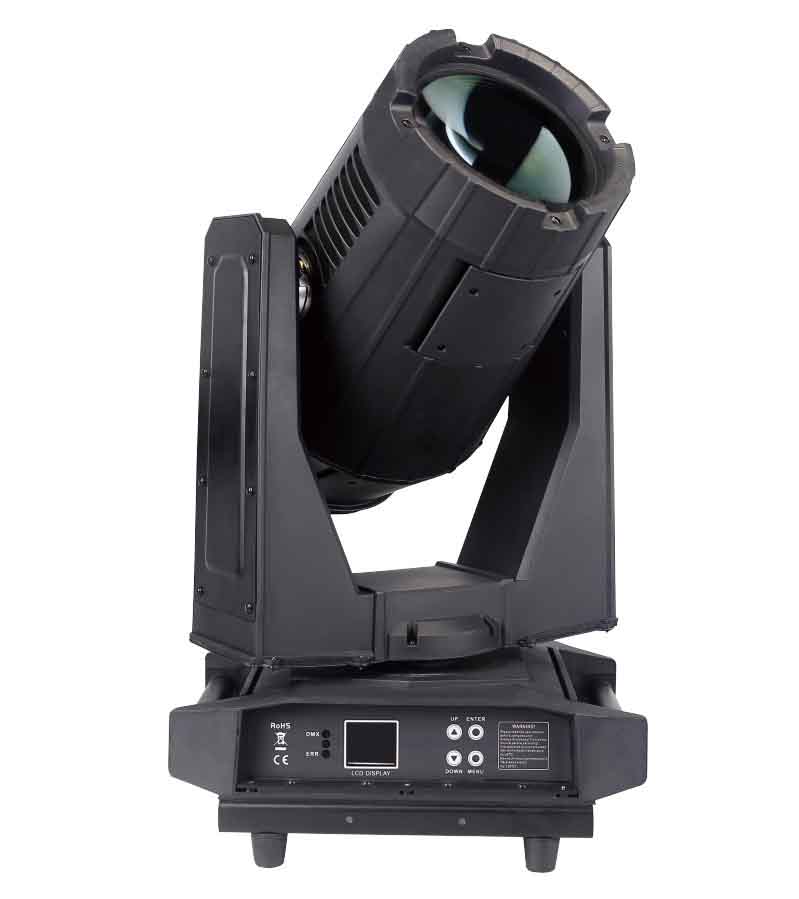

MF-550FBI
480/550W waterproof beam moving head light
Product features:
1. Suitable for large-scale mountain shows, cultural tourism night tour theme parks, building landmarks, performing arts programs, and outdoor performances;
2. Beautiful appearance private model design, double arc design can avoid surface water accumulation and dust accumulation; IP65 waterproof and dustproof;
3. Wide voltage range operation, strong adaptability and high safety, imported color film, rich colors;
4. Imported light source, fully coated optical lens, full beam, sharp, strong penetration.
5. Control diversity: RDM, console, central control, offline programming, master-slave control.
Power parameters
Input power: AC100 -240V
Power frequency: 50/60Hz
Power: 650W
Lighting parameters
Waterproof coefficient: IP65
Heat dissipation: air cooling
Maximum ambient temperature: 45℃
Shell color: black
Light source specifications
Bulb specifications: 480/550W imported bulbs
Bulb color temperature: 8000K
Average life of bulb: 2,000 hours
Control system
Number of DMX control channels: 19CH international standard DMX512 channels
DMX connector: 3 Pin XLR input and output (hand in hand)
Power connector: hand in hand power input, output
Operation mode: master-slave/auto/DMX
Horizontal scan: 540o, (16bit precision scan)
Vertical scan: 270o, (16bit precision scan)
Advanced scanning system is faster, cooler and quieter , with automatic error correction reset function
Color disk: 14 fixed colors + white light, color film can be positioned arbitrarily
Pattern disk: 12 fixed patterns + white light + 5 glass pattern disks, with pattern jitter and pattern
Arbitrary positioning function
Six-color atomization: 1 six-color rainbow effect + one atomization
Focus: electronic focus, ultra-fine and smooth adjustment of focal length
Prism 1: 12 double-layer prisms, prisms can be rotated separately
Prism 2: 8+16 prisms, rotatable prisms
Two prisms can be overlapped and rotated in both directions
Emitting angle: 2°
Dimming: 0 - 100%
Strobe: 1 -25Hz
Full-color LCD display, with 5 touch buttons
Color effect
Color: 6 colors, rainbow effect
Emitting angle: 2°
Strobe: 1 -25Hz
Dimming: 0 - 100%
Illumination : Full brightness 280000lux at 15 meters
Dimensions
Product size (LxWxH): 39* 32*61cm
Net weight: 20.2kg
