MF-L1000FG

1000W waterproof cutting light

Product features:

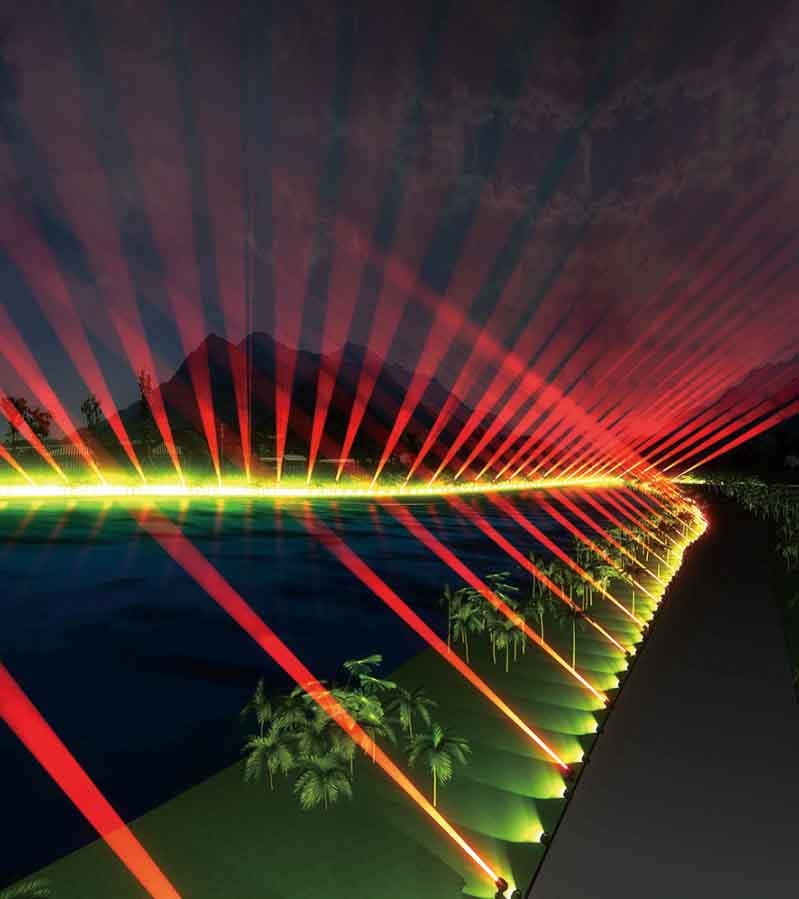

1. Suitable for large-scale mountain shows, cultural tourism night tour theme parks, building landmarks, performing arts programs, and outdoor performances;

2. Beautiful appearance private mold design, double arc design can avoid surface water accumulation and dust accumulation; IP65 waterproof and dustproof;

3. Wide voltage range operation, strong adaptability and high safety, imported color film, rich colors;

4. Imported light source, fully coated optical lens, full beam, sharp, strong penetration.

5. Control diversity: RDM, console, central control, offline programming, master-slave control.

Power parameters

Input power: AC100 -240V

Power frequency: 50/60Hz

Power: 1000W

Lighting parameters

Waterproof coefficient: IP65

Heat dissipation: air cooling

Maximum ambient temperature: 45℃

Casing color: black

Display: LCD color screen

Signal input/output: three-core waterproof XLR socket

Power socket: waterproof power connector input/output

Light source specifications

Light source: 800W white light LED imported module

Color temperature: 7500K

Light source life: ≥20000h control system

Zoom angle: 6°~ 45°

Movement: horizontal -540°, vertical -270°

Accuracy: 16 bit accuracy scanning

Calibration: X axis/Y Automatic axis position correction

Dimming: 0%~100% smooth linear dimming

Strobe: 1-16 times/second with multiple speed strobe effects

C/M/Y: 0-100% linear adjustment

CTO: 2800K-6800K linear CTO adjustment

Cutting system: 4 cutting blades, 8 independent control directions, the entire cutting frame can be rotated 90 degrees

Prism: 1 3-prism, bidirectional rotation and adjustable speed

Channel mode: 33 channels

Control mode: DMX512, RDM, self-driving, master-slave

Color effect

Color wheel: one color wheel, 7 colors + white light

Fixed pattern wheel: 5 fixed patterns + water pattern + white light

Glass pattern wheel: 7 Glass pattern + white light composition

CMY+CTO arbitrary color dyeing effect, high-definition prism effect, independent atomization and mixed water ripple effect, electric focus and pattern magnification, 90-degree rotatable cutting disk.

Lamp size

Size/446x362x770 mm

Weight: 33kg
