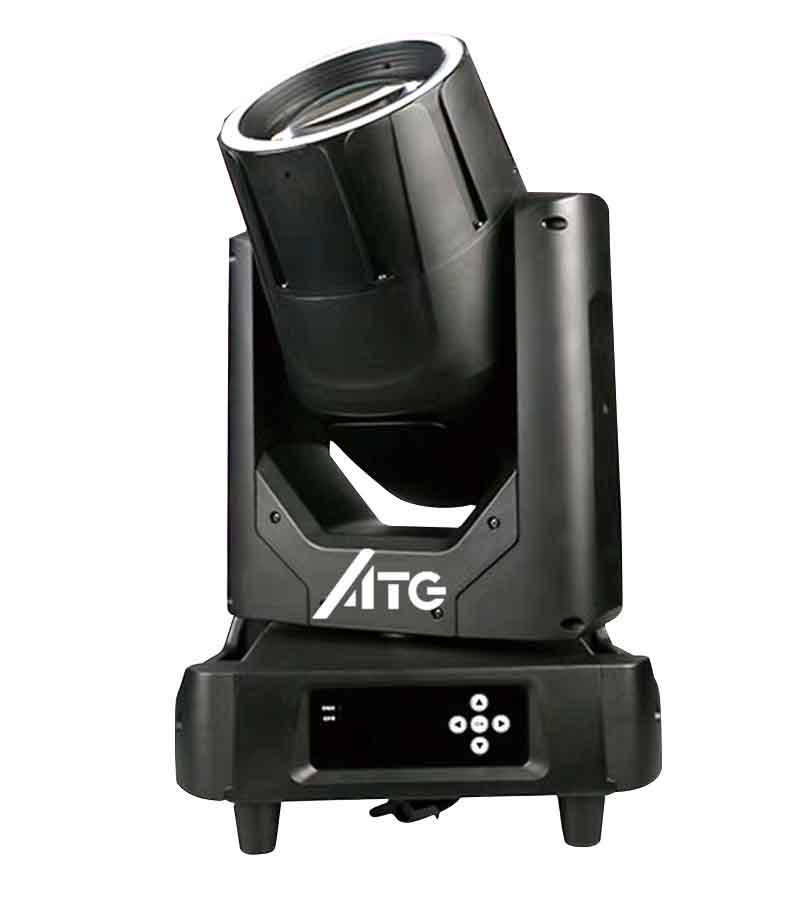

MF-420FBI

420W waterproof beam moving head light

Product features:

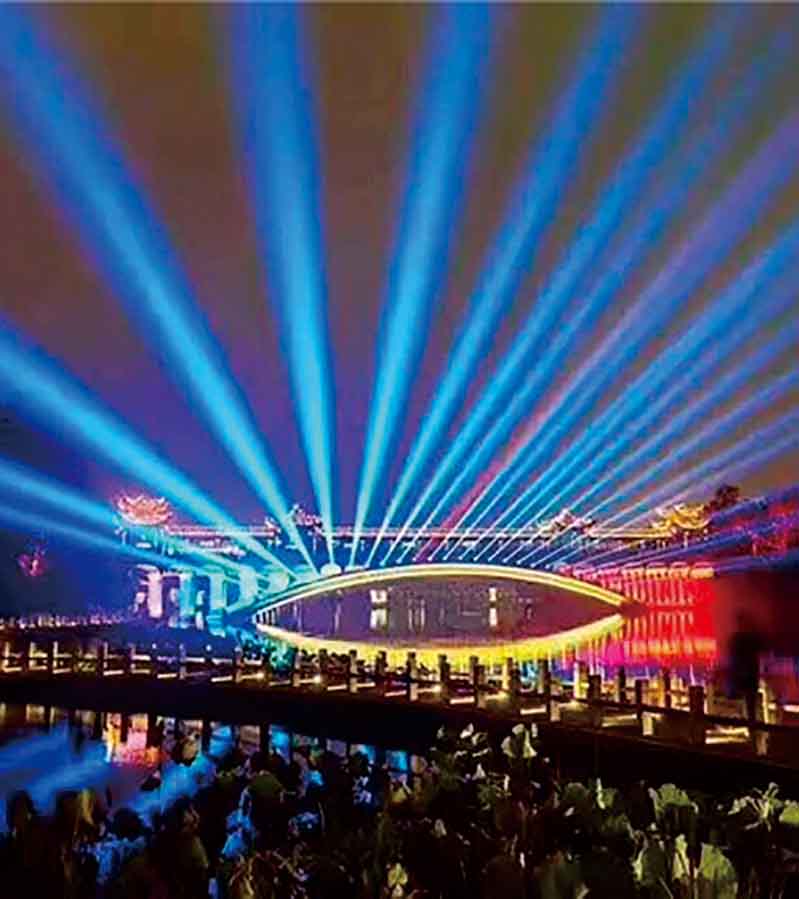

1. Suitable for large-scale mountain shows, cultural tourism night tour theme parks, building landmarks, performing arts programs, and outdoor performances;

2. Beautiful appearance private model design, double arc design can avoid surface water accumulation and dust accumulation; IP65 waterproof and dustproof;

3. Wide voltage range operation, strong adaptability and high safety, imported color film, rich colors;

4. Imported light source, fully coated optical lens, full beam, sharp, strong penetration.

5. Control diversity: RDM, console, central control, offline programming, master-slave control.

Power parameters

Input power: AC100 -240V

Power frequency: 50/60Hz

Power: 550W

Lighting parameters

Waterproof coefficient: IP65

Heat dissipation: air cooling

Maximum ambient temperature: 45℃

Shell color: black

Light source specifications

Bulb specifications: 420W imported bulb

Bulb color temperature: 8000K

Average life of bulb: 2,000 hours

Control system

Number of DMX control channels: 19CH international standard DMX512 channel

DMX connector: 3 Pin XLR input and output (hand in hand)

Power connector: hand in hand power input, output

Operation mode: master-slave/auto/DMX

Horizontal scan: 540o, (16bit precision scan)

Vertical scan: 270o, (16bit precision scan)

Advanced scanning system is faster, cooler and quieter , with automatic error correction reset function

Color disk: 14 fixed colors + white light, color film can be positioned arbitrarily

Pattern disk: 12 fixed patterns + white light + 5 glass pattern disks, with pattern jitter and pattern

Arbitrary positioning function

Six-color atomization: 1 six-color rainbow effect + one atomization

Focus: electronic focus, ultra-fine and smooth adjustment of focal length

Prism 1: 12 double-layer prisms, prisms can be rotated separately

Prism 2: 8+16 prisms, rotatable prisms

Two prisms can be overlapped and rotated in both directions

Emitting angle: 2°

Dimming: 0 - 100%

Strobe: 1 -25Hz

Full-color LCD display, with 5 touch buttons

Color effect

Color: 6 colors, rainbow effect

Emitting angle: 2°

Strobe: 1 -25Hz

Dimming: 0 - 100%

Illumination : Full brightness 230000lux at 15 meters

Dimensions

Product size (LxWxH): 39* 32*61cm

Net weight: 20.2kg
