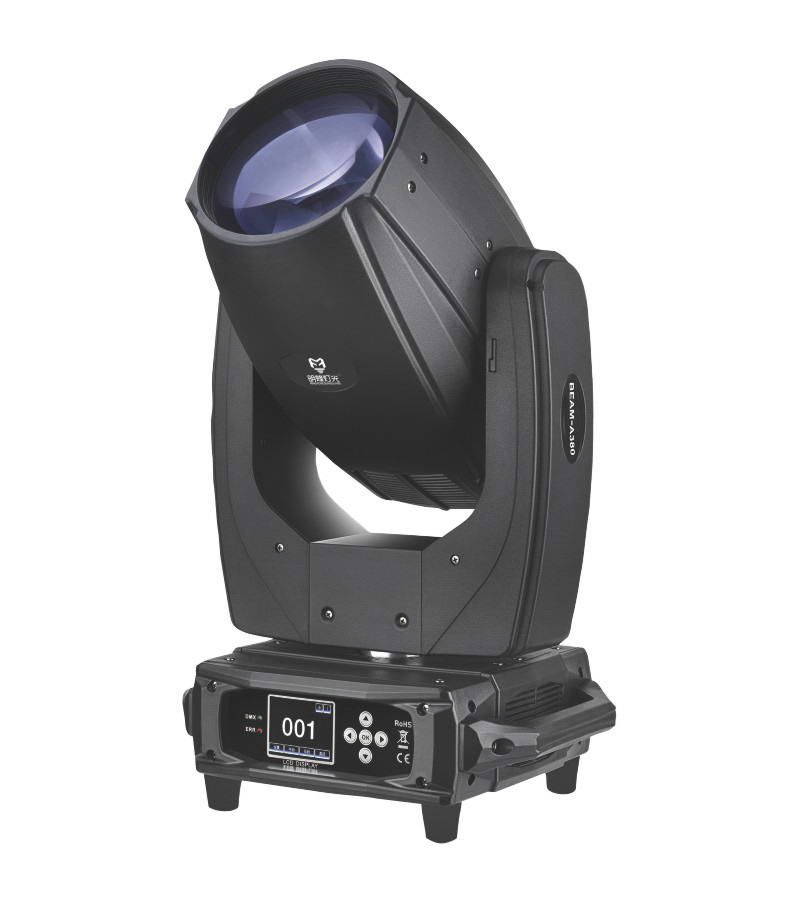

MF-G381BM

Mingfeng 380 beam light

Input voltage: AC100-240V 50-60Hz

Light source: PHILIPS MSD PIatinum 20R 380W

Ballast: PHILIPS 20R

Light source power: 380W

Total power: 600W

Color temperature correction: 8500K/6800K/4500K/3200K

Average life: 2000H

Channel: 20/24CH

Display: 2.8-inch widescreen LCD touch screen, Chinese and English display interface,

Can be reversed 180° display.

Support RDM dial address code, can be used as an external interface for software upgrade.

Color: 14 color filters + white light (half-color effect) 1 six-color filter

(can make colorful effect)

Pattern plate: one fixed pattern plate (18 patterns + 1 effect plate; 4 effects)

Dual prism plate: can produce 11 prism effects

Composed of 2 rotating prism plates:

Prism plate 1: 1 8-prism, 1 linear 6-prism, 1 atomization

Prism plate 2: 1 32-prism, 1 linear 6-prism, 1 24-honeycomb prism (can be combined at will according to customer requirements)

Focus: Linear electric focus, the light column can be large or small; support double magnification

Atomization: imported high temperature resistant atomizer, 0%-100% atomization, atomization soft light dyeing effect, dyeing angle 0-20 degrees, can be used for fixed-point chasing light surface light, lens diameter: 165mm (large diameter thick beam)

Dimming: 0%-100% mechanical dimming smooth and flicker-free, adjustable strobe 0.5-14 times/second, support mechanical strobe and adjustable speed strobe effect, support strobe macro function (pulsation, synchronous, asynchronous, random)

Rotation: X-axis 540 degrees, Y-axis 270 degrees can automatically correct positioning, scan position memory function, automatic error correction reset function.

Lamp appearance: high temperature resistant plastic + molded alloy material (using high-strength PA66 raw material with high temperature resistance, flame retardant, anti-aging and wear resistance, light and anti-fall and other characteristics) Use temperature: -45°C to 70°C, the bulb contains overheating protection.

Anti-radiation coated optical glass lens group, the lens is coated with 6 layers of full film inside and outside for better light transmittance. Mingfeng's special optical system makes the light beam stronger, more solid, without virtual edges, and the light beam is clean and full.

Other functions: The light bulb switch function can be controlled remotely by DMX, the control console can light and extinguish the light bulb, and the power-on light bulb function can be set on the display board. The display screen can display the use time of the lamp and light bulb, and the fan has automatic speed control function.

IP20 protection level, optional rain cover will reach IP44 protection level
