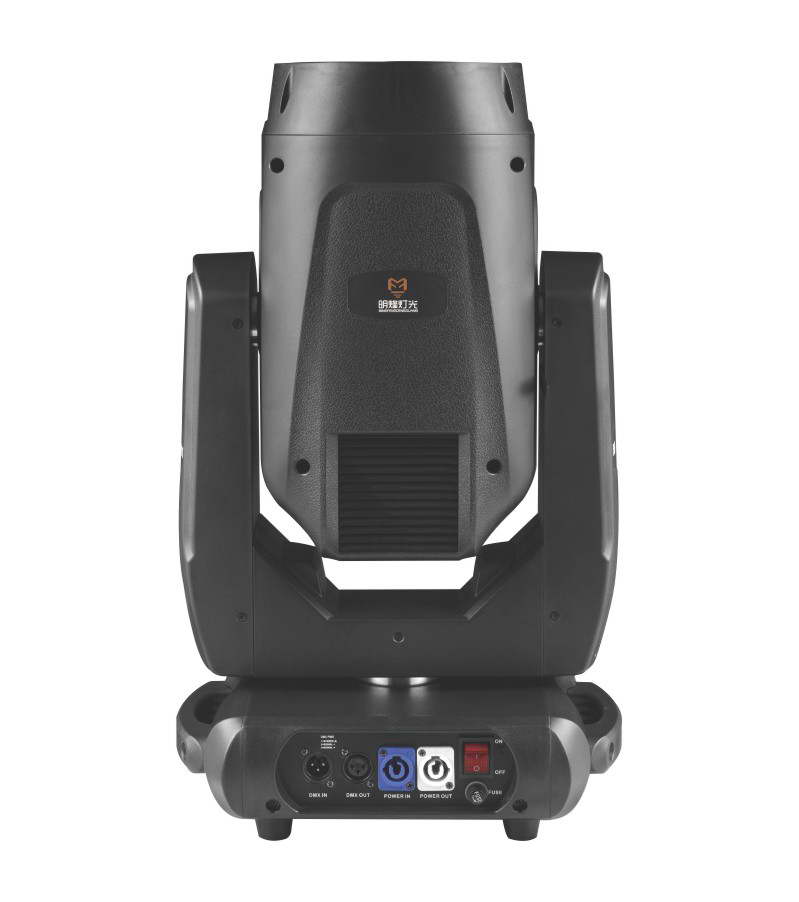

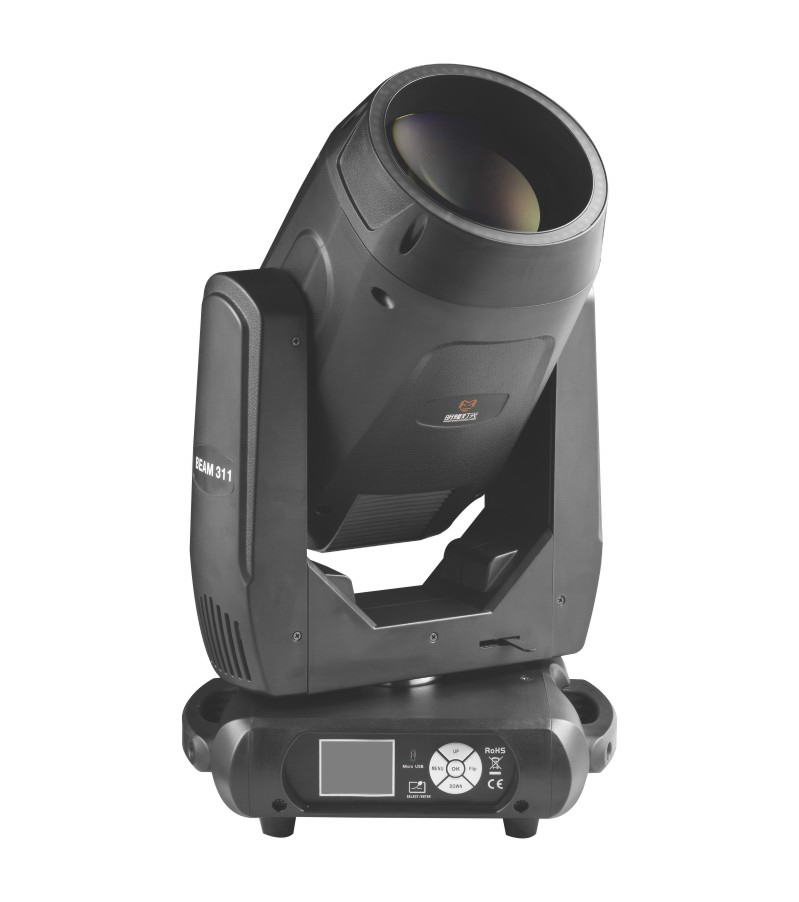

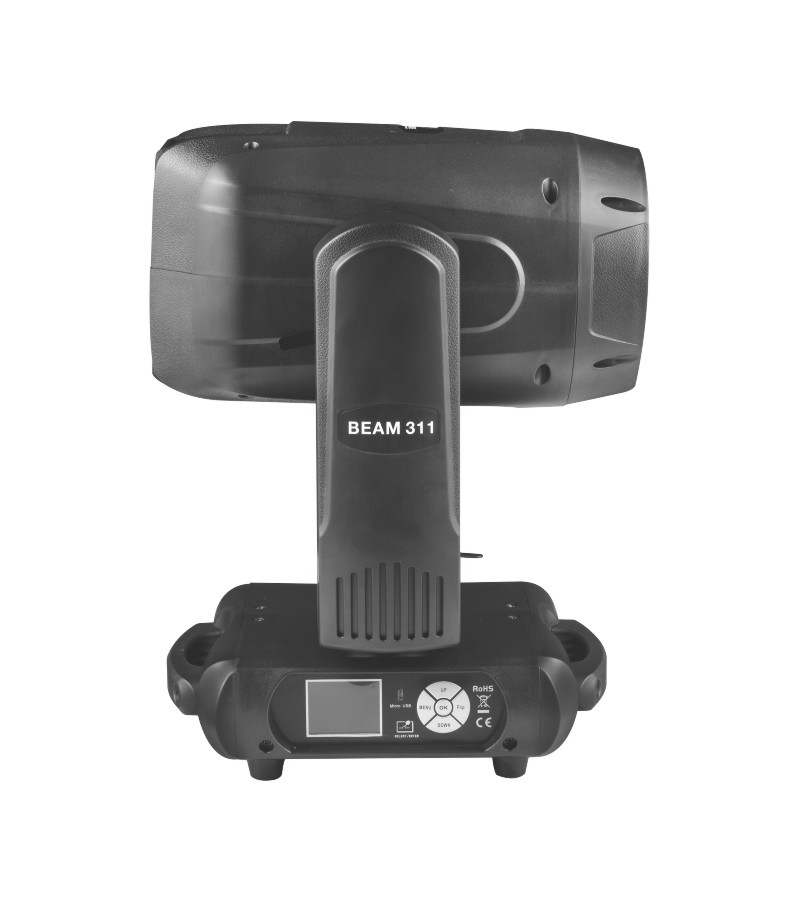

MF-G371BM

371W moving head beam light

Input voltage: AC100-240V 50/60Hz

Light source: OSRAM SIRIUS HRI 371WS

Total power: 550W (with PFC switching power supply)

Color temperature correction: 8500K/6800K/4500K/3200K

Average life: 2000H

Channel: 24/28CH

Display: 2.8-inch widescreen LCD touch screen, Chinese and English display interface,

Can be reversed 180° display

Color: 14 color filters + white light (half-color effect)

Fixed pattern plate: 17 patterns + white light; (4 glass patterns can be added)

Color filter: 1 six-color filter (seven-color effect)

Prism: Two independent rotating prisms, (1 8-prism and one honeycomb 24-prism) The dual prism combination can generate 32 sharp and clear beam effects with colorful prism effects.

Dimming: 0%-100% mechanical dimming is smooth and flicker-free, dual-chip strobe is adjustable from 0.5 to 14 times/second, the power of the strobe lamp is reduced when it is turned off, energy-saving and environmentally friendly, and supports strobe macro functions (pulsation, synchronization, asynchronous, random)

Atomization: imported high-temperature resistant atomization film, 0%-100% atomization, atomization soft light dyeing effect, dyeing angle 0-20 degrees, can be used as fixed-point chasing light surface light, lens diameter: 165mm (large-caliber thick beam)

XY: three-phase motor drive, silent, fast and no displacement: rotation angle X axis 540 degrees, Y axis 270 degrees can automatically correct positioning, scanning position memory function,

Automatic error correction reset function.

Appearance of lamp: high temperature resistant plastic + molded alloy material (using high-strength PA66 raw material with high temperature resistance, flame retardant, anti-aging and wear resistance, light and anti-fall characteristics) Use temperature: -45°C to 70°C, the bulb contains overheat protection.

Anti-radiation coated optical glass lens group, the lens is coated with 6 layers of full film inside and outside for better light transmittance, Mingfeng's special optical system makes the beam feel stronger, the beam is more solid, there is no virtual edge, and the beam is clean and full

Other functions: The bulb switch function can be controlled remotely by DMX, the console RDM dials the address code, the console lights the bulb, and the bulb is extinguished. At the same time, the power-on light function can be set on the display board. The display can display the use time of the lamp and bulb, and the fan automatic speed adjustment function.

Power plug: power input + power output

Signal plug: 3&5 core signal line, signal input + signal output

Certificate: CE&Rohs certificate

Dimensions: 264*338*558mm

Net weight of product: 18KG
