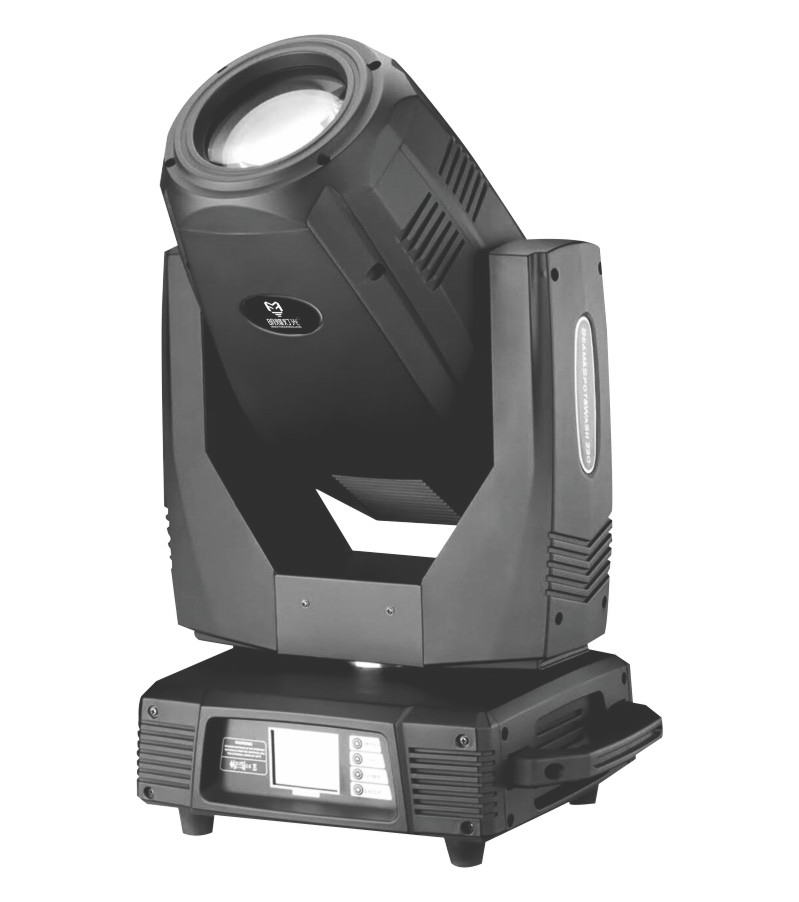

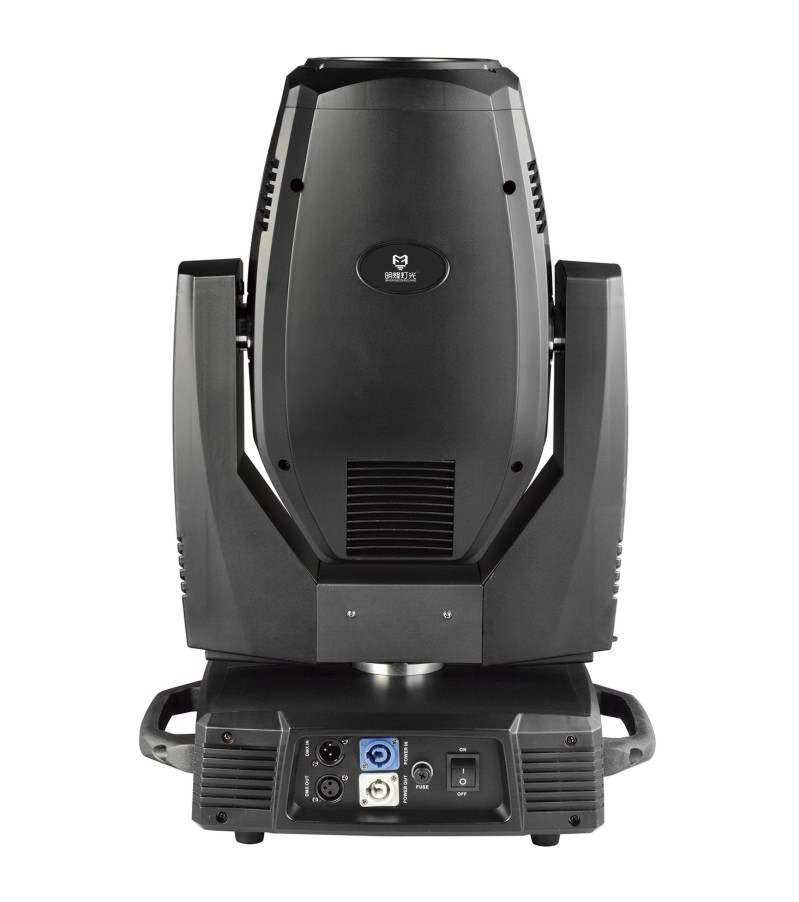

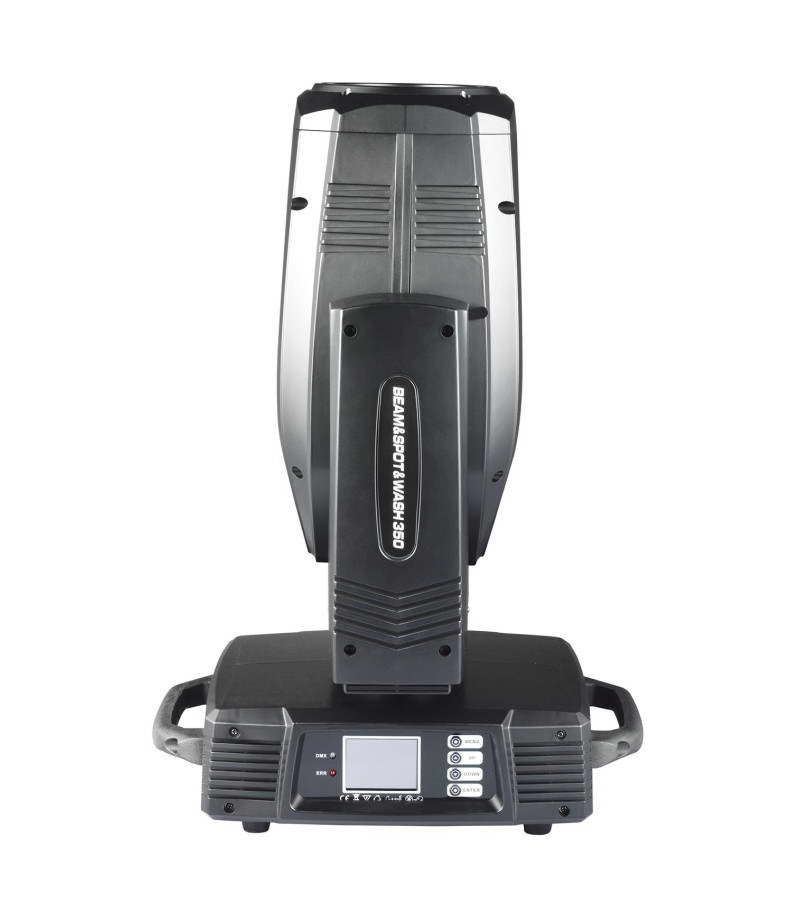

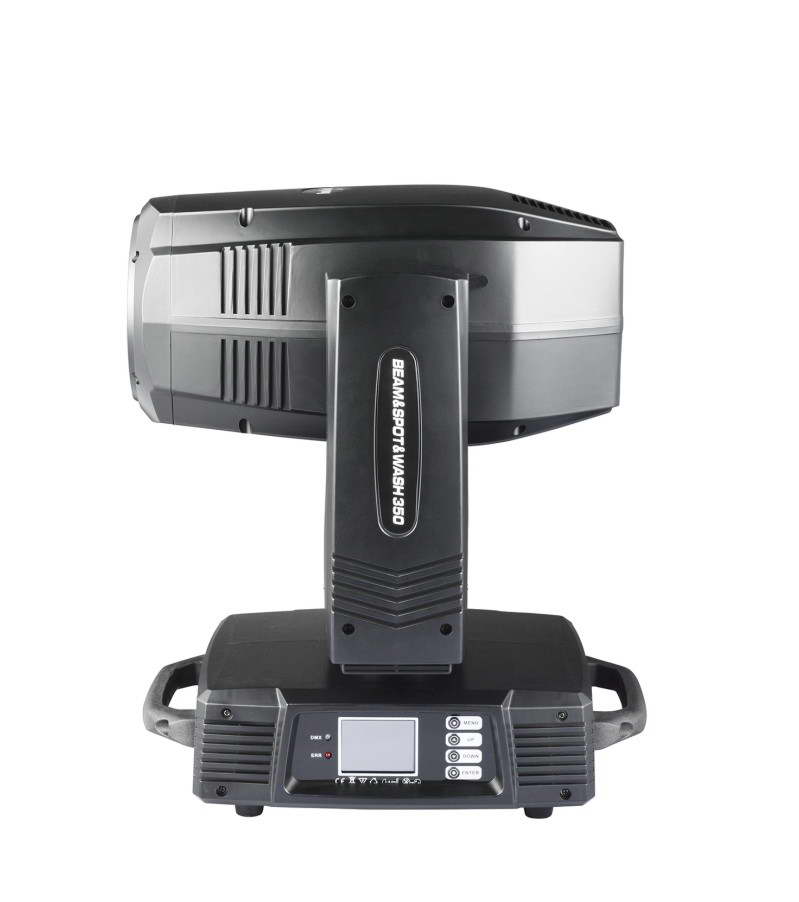

MF-350S1

Mingfeng 350 three-in-one moving head light (beam, pattern, wash)

Voltage: AC100V-240V, 50/60HZ

Light source: Youdeng 17R 350W

Total power: 500W (with PFC switching power supply)

Color temperature: 7500K

Average life: 2000H

Display: 2.8-inch widescreen LCD touch screen, Chinese and English display interface, can be reversed 180° display

Focus: linear electric focus, light column can be large or small, linear magnification, optical angle 2.5-39° rotating pattern is 4.5 to 40 degrees, fixed pattern is 3-30 degrees

Atomization: imported high temperature resistant atomizer, 0%-100% atomization, atomization soft light wash effect, wash angle 0-40 degrees, can be used as fixed-point chasing light surface light

Dimming: 0%-100% mechanical dimming smooth and flicker-free , double-chip strobe 0.5-14 times/second adjustable, turn off the strobe lamp power reduction, energy saving and environmental protection, support strobe macro function (pulsation, synchronous, asynchronous, random)

Control channel: 16/24 DMX channels can be switched

Color disk: 13 colors + white light

Dual pattern disk: one fixed pattern disk (13 patterns + white) + one rotating pattern disk (7 glass patterns + aperture)

Glass pattern size diameter: 15.9mm, image diameter: 12mm; customizable customer LOGO, change at will

Prism: 8 prisms + 16 prisms, (16+24 prisms can be combined at will)

Motor: XY axis three-phase motor drive (silent, fast and no displacement)

XY: 540° horizontal rotation angle and 270° vertical rotation angle, 16 Bit high-precision horizontal and vertical rotation, scanning position memory function, automatic error correction reset function

Other functions: The bulb switch function can be controlled remotely by DMX, the console can light and extinguish the bulb, and the power-on light function can be set on the display board. The display screen can display the lamp and bulb usage time, and the fan automatic speed regulation function.

Appearance: High temperature resistant plastic + molded alloy material (flame retardant) Applicable temperature: -45℃ to 70℃, the bulb contains overheating protection

Anti-radiation coated optical glass lens group, the lens is coated with 6 layers of full film inside and outside for better light transmittance, Mingfeng's special optical system makes the beam feel stronger, the beam is more solid, without virtual edges, and the beam is clean and full

Safety: Horizontal and vertical quick locks facilitate product transportation and maintenance

Protection level: IP20 protection level, optional rain cover protection level will reach IP44

Net weight: 19.6KG Gross weight: 22KG

Dimensions: 409x590x350mm;

Carton packaging: 480X480X590mm
