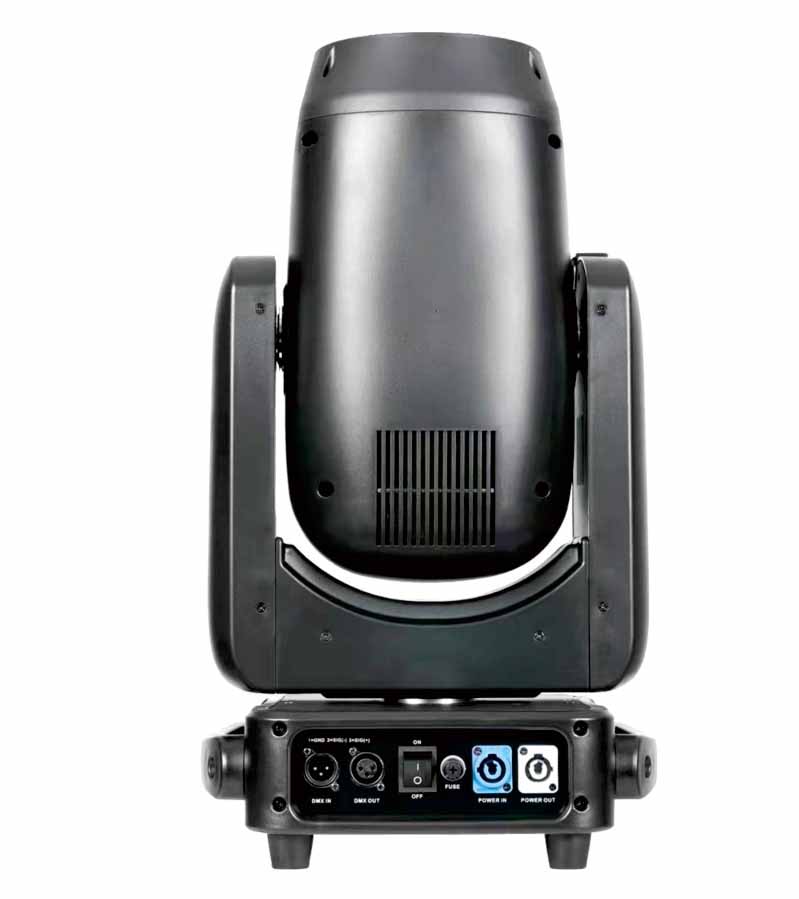

MF-LM300S1

LED300W module three-in-one pattern light

Rated voltage: AC100V~240V 50/60Hz

Lamp specifications: 300W white light LED light peak module light source

Rated life: 20,000 hours, color temperature: 9000K

Color: with macro function Color plate: 14 colors + white light full color/half color/linear color variable speed two-way rainbow effect, built-in high-efficiency Hall device

Fixed pattern: 2-level beam adjustment. 1 fixed pattern plate: 6 patterns + 1 water effect + white light, bidirectional variable speed rotation, built-in high-efficiency Hall device

Rotation pattern: 6 exquisite custom rotatable glass patterns + 1 water pattern, built-in high-efficiency Hall device

Prism: 1 8-prism, bidirectional variable speed rotation, with index function variable speed jitter effect

Soft light: 1 soft light mirror, 0~100% linear adjustment

Focus: DMX linear focus, with automatic focus function

Magnification: high-precision glass optical lens, linear magnification 0-45 degrees

Electronic strobe, 0.3~25 times/ seconds, synchronous and asynchronous random strobe can be selected

Dimming: Electronic dimming 0~100% linear adjustment, with gamma curve dimming frequency 1.2K~25K adjustable, with macro dimming linear stable and smooth without flicker, using stable constant current drive and power supply, suitable for video shooting

Rotation angle: XY axis adopts high-speed silent 60 three-phase motor drive, with high-precision magnetic encoding positioning device, making the operation positioning more accurate, and can automatically return to position after misoperation, horizontal and vertical speeds are adjustable; XY axis rotation function and reverse function,

Horizontal direction 540° (16 bit precision scanning), vertical direction 270° (16 bit precision scanning)

Control mode: 16 (simplified)/19 (standard) 2 channel control modes, standard DMX512 protocol, RDM protocol

Control interface: DMX512 interface (3-core/optional 5-core), power cord hand-in-hand socket

Sleep function: Advanced technology is used to realize remote sleep function. When the lamp is disconnected from the signal, it automatically enters the sleep state, making the lamp more stable and safer

Display function: 1.7-inch LCD display, Chinese and English bilingual menu, sensor fault display, temperature display

Cooling system: High thermal conductivity copper tube radiator, fan intelligent monitoring technology

Automatically adjust the fan speed according to the temperature of the lamp, built-in overheat protection intelligent system/intelligent temperature and noise balance module

Net weight: 13KG

Gross weight: 14.7KG
