Three-in-one pattern light
Position:Home >> Products >> Three-in-one pattern light
Product Details Video Download

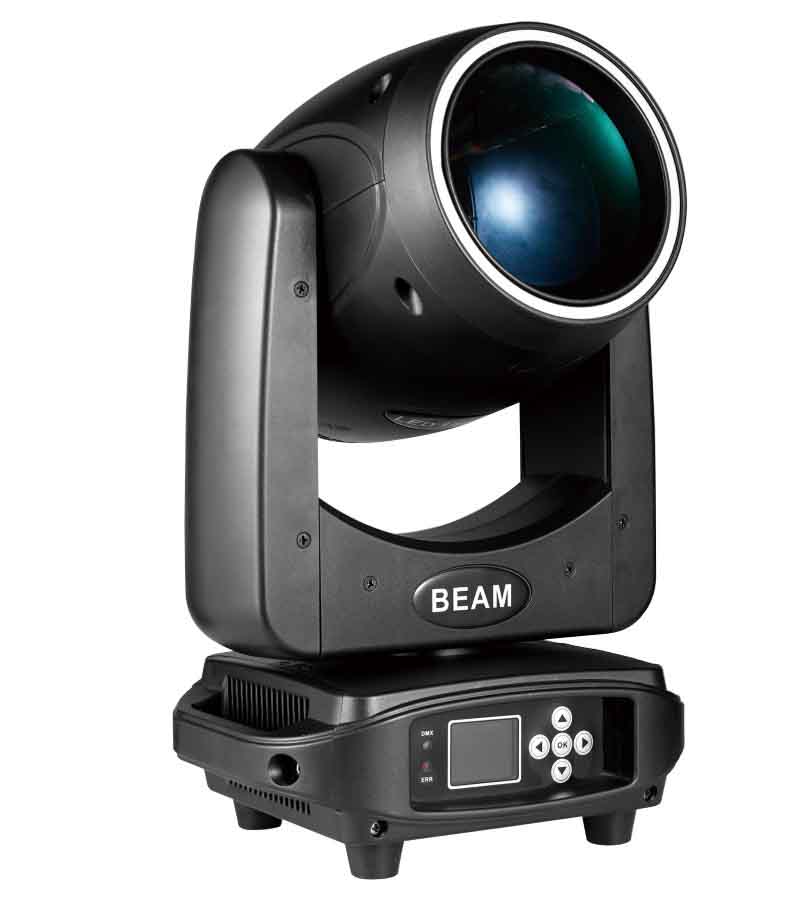

MF-L2036B

LED 200W beam light (with aperture)

Rated voltage: AC100V~240V 50/60Hz

Lamp beads: 200W white light LED

Rated life: 20,000 hours, color temperature: 9000K

LED lamp ring: 36 LED high-brightness three-in-one lamp beads, built-in a variety of horse racing effect programs, can be separated from the console master-slave synchronous operation

Beam angle: zoom 0°~ 5°128mm large-diameter light, beam angle 0-2.2 degrees

Color: with macro function Color disk: 12 colors + white light full color/half color/linear color variable speed two-way rainbow effect, built-in high-efficiency Hall device

Pattern: 1 fixed pattern disk: 13 patterns + white light, bidirectional variable speed rotation, variable speed shaking effect, bidirectional variable speed flow effect, built-in high-efficiency Hall device

Prism: 1 (8 prisms), can be superimposed bidirectional variable speed rotation, with index function variable speed shaking effect

Focus: DMX linear focus, with automatic focus function

Fog: 1 (fog mirror)

Electronic strobe, 0.3~25 times/second, synchronous and asynchronous random strobe can be selected

Dimming: Electronic dimming 0~100% linear adjustment, with gamma curve dimming frequency 1.2K~25K adjustable, with macro instruction dimming linear stable and smooth without flicker, using stable constant current drive and power supply, suitable for video shooting

Rotation angle: horizontal direction 540° (16 bit precision scanning), vertical direction 270° (16 bit precision scanning) XY axis adopts high-speed silent motor drive, making the operation faster and smoother. It can automatically return to its original position after a misoperation. The horizontal and vertical speeds are adjustable; XY axis rotation function and reverse function; photoelectric high-precision positioning

Control mode: 22CH (standard) 1 channel control mode, standard DMX512 protocol, RDM protocol

Control interface: DMX512 interface (3-core/optional 5-core), power cord hand-in-hand socket

Sleep function: Advanced technology is used to realize remote sleep function. When the lamp is disconnected from the signal, it automatically enters the sleep state, making the lamp more stable and safer

Display function: 1.77-inch LCD display, Chinese and English bilingual menu, sensor fault display, temperature display

Cooling system: light aluminum radiator, fan intelligent monitoring technology

Automatically adjust the fan speed according to the temperature of the lamp, built-in overheat protection intelligent system/intelligent temperature and noise balance module

Light weight:

Protection level: IP20, optional rain cover with protection level up to IP44

Lighting packaging: waterproof and shockproof aviation box or carton

Packing size: 46*31*30CM

Net weight: 7.4KG

Gross weight: 7.8KG
