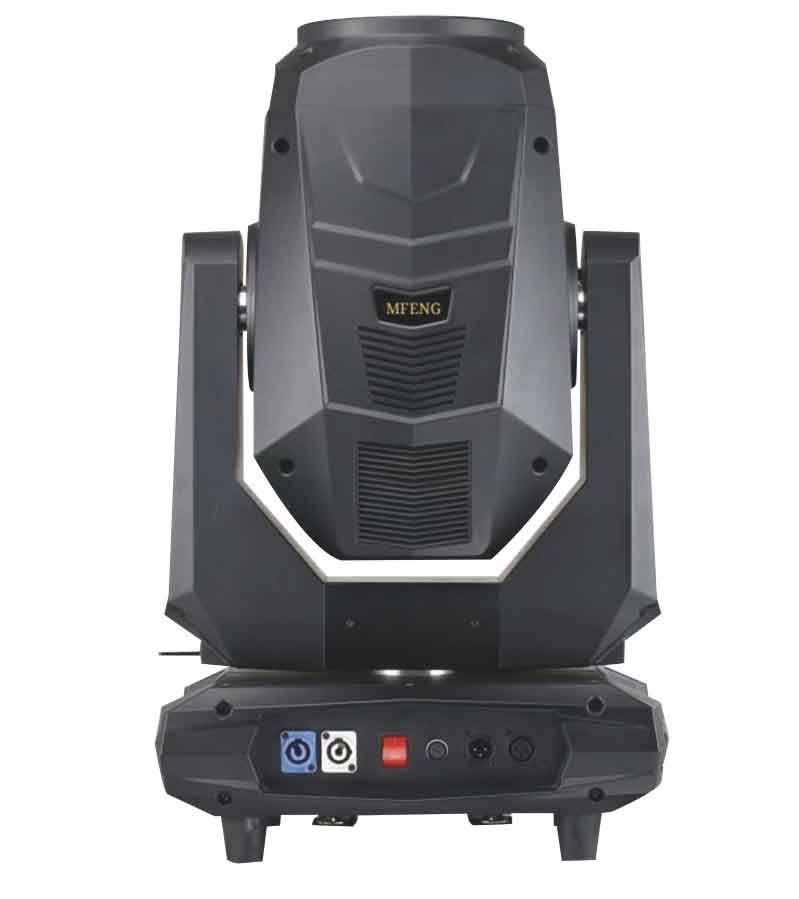

MF-480S1

480 three-in-one moving head light

Voltage: 100-240V, 50/60Hz;

Light source: OSRAM SIRIUS HRI 420W

Average life: 2000H

Total power: 600W (with PFC switching power supply)

Color temperature: 7800K

Display: 2.8-inch widescreen LCD touch screen, Chinese and English display interface, can be reversed 180° display.

Channel mode: 20/24CH;

Color wheel: 14 colors + white (can achieve color rainbow)

Fixed pattern: 17 patterns + white.

Rotating pattern: 7 patterns + white (pattern pieces can be quickly disassembled and assembled, variable speed shaking, interchangeable rotating pattern pieces can achieve autobiography, water flow, shaking effects, and the pattern can be positioned at any angle.

Prism: 8 prisms + 16 prisms, (16+24 prisms can be combined at will)

Effect wheel: 1 two-way water flow dynamic effect wheel with linear 3200-7500CTO+white light.

Focus: Linear electric focus, the light column can be enlarged or reduced linearly, the rotating pattern is 6.5 to 50° and the fixed pattern is 3.5 to 32°

Atomization: Imported high temperature resistant atomization piece, 0%-100% atomization, atomization soft light dyeing effect, dyeing angle 6-50 degrees, can be used as fixed-point chasing light surface light.

Dimming: 0%-100% mechanical dimming smooth and flicker-free , double-chip strobe 0.5-14 times/second adjustable, turn off the strobe lamp power reduction, energy saving and environmental protection, support strobe macro function (pulsation, synchronous, asynchronous, random)

Motor: XY axis three-phase motor drive (silent, fast and no displacement)

Rotation angle: X axis 540 degrees, Y axis 270 degrees can automatically correct positioning. Horizontal and vertical quick locks facilitate product transportation and maintenance.

Other functions: Remote DMX control of the bulb switch function, control console light bulb, extinguish the bulb, and set the power-on light bulb function on the display board. The display can display the lamp and bulb usage time, and the fan automatic speed regulation function.

Lamp appearance: high temperature resistant plastic + molded alloy material (Using high-strength PA66 raw materials, it has the characteristics of high temperature resistance, flame retardant, anti-aging and wear resistance, light and anti-fall, etc.) Operating temperature: -45°C to 70°C, the bulb has overheat protection.

Anti-radiation coated optical glass lens group, the lens is coated with 6 layers of full film inside and outside for better light transmittance, Mingfeng's special optical system makes the beam feel stronger, the beam is more solid, without virtual edges, and the beam is clean and full.

Protection level: IP20 protection level, optional rain cover protection level will reach IP44

Net weight: 22KG

Dimensions: 40X30X64CM
