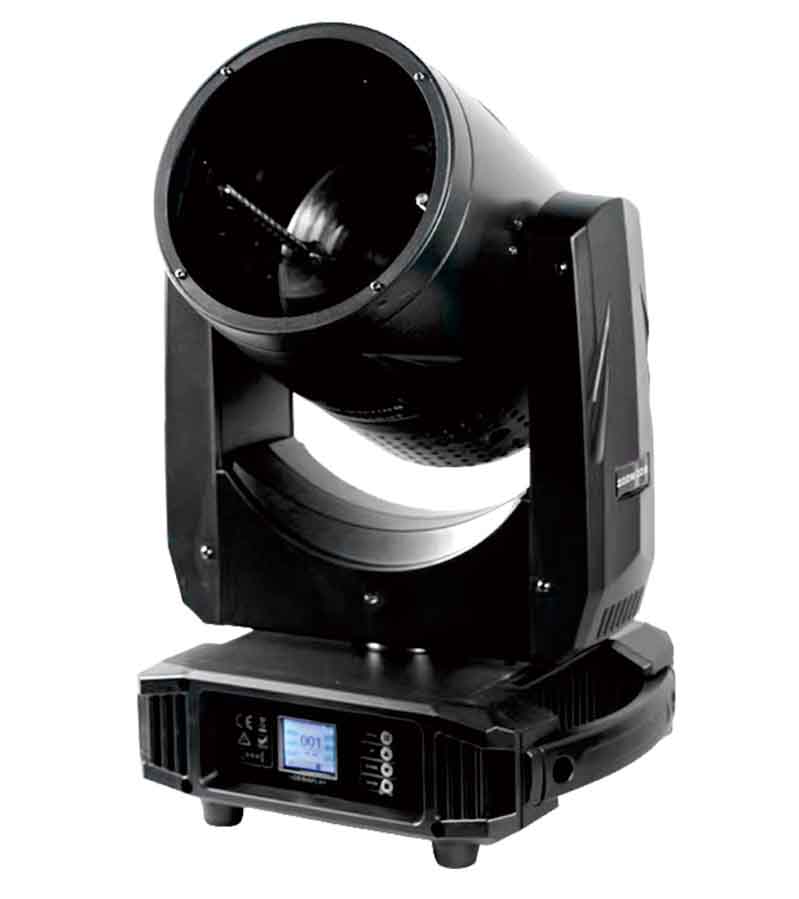

MF-L200YM

LED200 moving head light

Rated voltage: AC100V~240V 50/60Hz

Input power: 250W

Light source specifications: 1 COB200W light source

Rated life: 60,000 hours

Color temperature: 2800-6500K

Focus: 0-50°DMX linear focus, with automatic focus function

Projection distance: 8-180m

Display index: greater than 95

Electronic strobe, 0.3~25 times/second, synchronous and asynchronous random strobe can be selected

Dimming: Electronic dimming 0~100% linear adjustment, with gamma curve dimming frequency 1.2K~25K adjustable, with macro dimming linear stable and smooth without flicker, using stable constant current drive and power supply, suitable for video shooting

Rotation angle: XY axis adopts high-speed silent 60 three-phase motor drive, with high-precision magnetic encoding positioning device, making the operation positioning more accurate, and can automatically return to the position after misoperation, horizontal and vertical speeds are adjustable; XY axis rotation function and reverse function,

Horizontal direction 540° (16 bit precision scanning), vertical direction 270° (16 bit precision scanning)

Control mode: 11 (simplified) 1 channel control mode, standard DMX512 protocol, RDM protocol

Control interface: DMX512 interface (3-core/optional 5-core), power cord hand-in-hand socket

Sleep function: Advanced technology is used to realize remote sleep function. When the lamp is disconnected from the signal, it automatically enters the sleep state, making the lamp more stable and safer

Display function: 1.77-inch LCD display, Chinese and English bilingual menu, sensor fault display, temperature display

Cooling system: High-conductivity light aluminum radiator, fan intelligent monitoring technology automatically adjusts the fan speed according to the temperature of the lamp, built-in overheating protection intelligent system/intelligent temperature and noise balance module

Protection level: IP20, optional rain cover protection level up to IP44

Lamp packaging: waterproof and shockproof aviation box or carton

Gross weight: 15KG Net weight: 13KG

Product size: 46*30*22CM

Packing size: 58*36*32CM (one in one)
