MF-1940FY

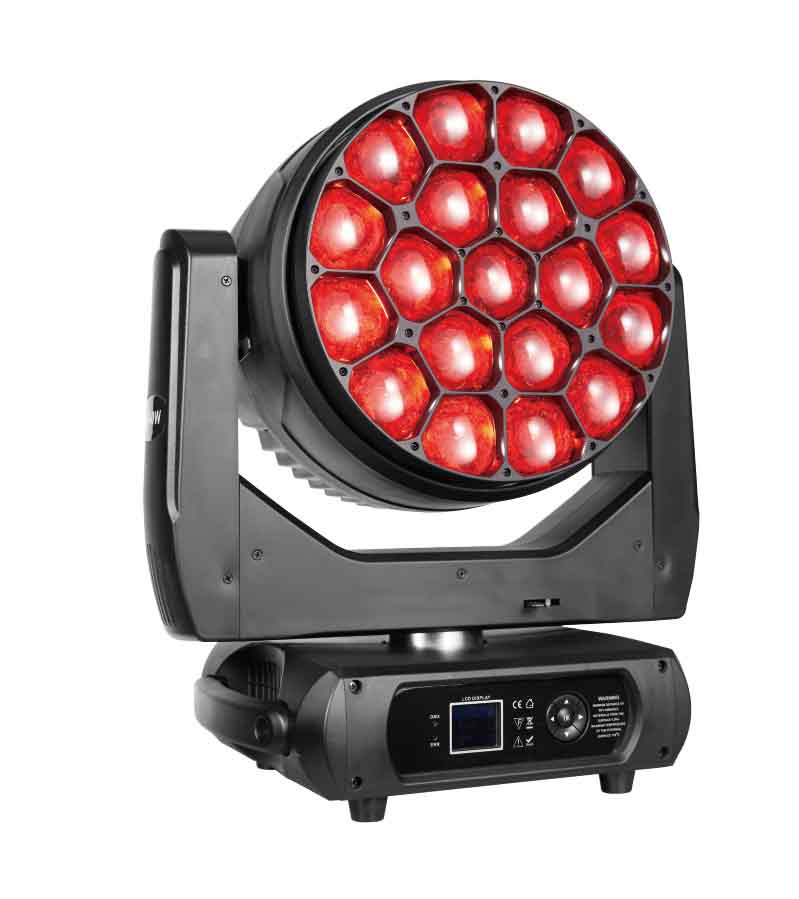

1940 Big Bee Eye (OSRAM Pocky)

Input power: 1000W

Light source specifications: 19 40W four-in-one LED OSRAM light sources

Approved life: 50,000 hours

Color: red, green, blue, white and many other colors

Focus: 2°-60° DMX linear focus, with automatic focus function

Color temperature control: built-in CTO DMX linear dimming

Electronic strobe, 0.3~25 times/second, synchronous and asynchronous random strobe can be selected

Dimming: Electronic dimming 0~100% linear adjustment, with gamma curve dimming frequency 1.2K~25K adjustable, with macro dimming linear stable and smooth without flicker, using stable constant current drive and power supply, suitable for video shooting

Rotation angle: XY axis adopts high-speed silent 60 three-phase motor drive, with high-precision imported Hall positioning device, making the operation positioning more accurate, and can automatically return to position after misoperation, horizontal and vertical speeds are adjustable; XY axis rotation function and reverse function

Horizontal direction 540° (16 bit precision scanning), vertical direction 270° (16 bit precision scanning)

Control mode: 22 (simplified) 22CH/22CH+RGB/22CH+RGBW/25CH/25CH+RGBW/36CH/

36CH+RGB/36CH+RGBW (standard) 9 channel control modes, standard DMX512 protocol, RDM protocol

Control interface: DMX512 interface (3-core/optional 5-core), power cord hand-in-hand socket

Sleep function: Advanced technology is used to achieve remote sleep function. When the lamp is disconnected from the signal, it automatically enters the sleep state, making the lamp more stable and safer

Display function: 1.77-inch LCD display, Chinese and English bilingual menu, sensor fault display, temperature display

Cooling system: High-conductivity copper tube radiator, fan intelligent monitoring technology automatically adjusts the fan speed according to the temperature of the lamp, built-in overheating protection intelligent system/intelligent temperature and noise balance module

Protection level: IP20, optional rain cover protection level up to IP44

Lighting packaging: waterproof and shockproof aviation box or carton

Net weight: 20kg Gross weight: 23kg

Product size: 36.5*46.3*46.3CM

Packaging size: 57*53*42CM

Effect mode: (vortex, kaleidoscope)

Front mirror plate can be directional infinite rotation, seamless splicing mirror plate, aspherical lens structure, single point control of lamp beads to control light strip effects: strobe, horse racing effect, with built-in program

Features:

1. Screen automatic rotation function, the system can automatically rotate the screen according to the direction of gravity, no manual rotation! The automatic rotation function can also be turned off

2. The integrated motherboard design solves the problems of smoke oil, colored paper, etc., and can control the lamp beads individually, horse racing effects, built-in and other rich effects, the product has built-in RDM remote console dial code upgrade function
