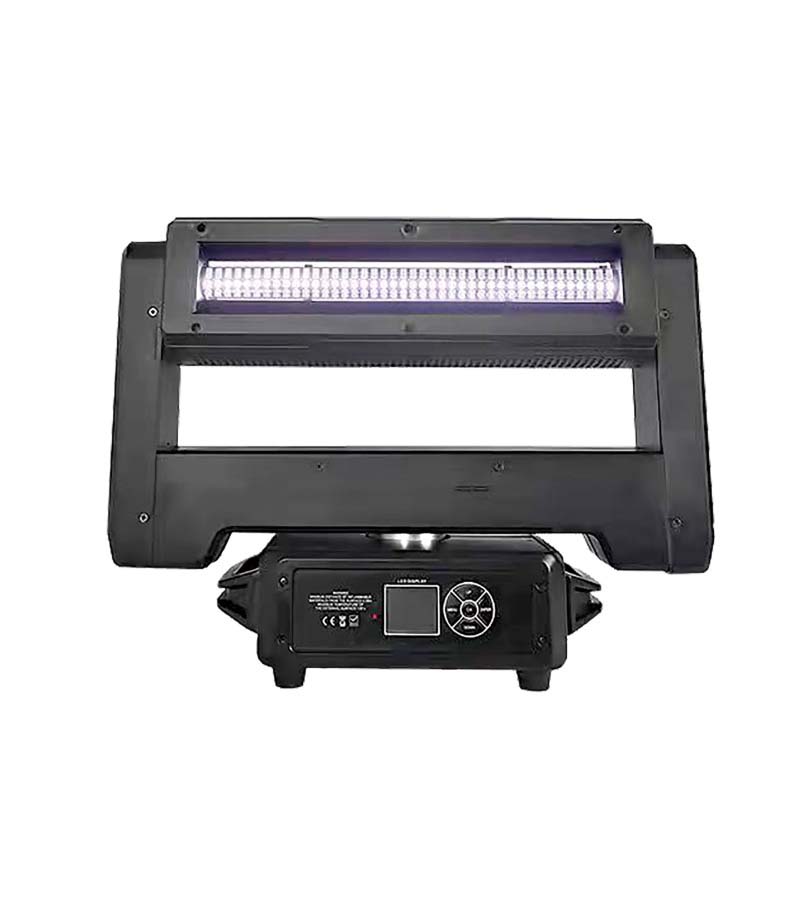

MF-0560ST

Double-sided blade electrodeless lamp (with focus adjustment)

Rated voltage: AC100V~240V 50/60Hz

Input power: 500W

Light source specifications: 5 60W four-in-one LED OSRAM light sources

Strobe lamp beads: 2016 0.8W 5050RGBW lamp beads

Approved life: 50,000 hours

Color: red, green, blue, white and many other colors

Main light focus: 4°-50°DMX linear focus, with automatic focus function

Color temperature control: built-in CTO DMX linear dimming

Electronic strobe, 0.3~25 times/second, synchronous and asynchronous random strobe can be selected

Dimming: Electronic dimming 0~100% linear adjustment, with gamma curve dimming frequency 1.2K~25K adjustable, with macro dimming linear stable and smooth without flicker, using stable constant current drive and power supply, suitable for video shooting

Rotation angle: XY axis adopts high-speed silent 60 three-phase motor drive, with high-precision imported Hall positioning device, making the operation positioning more accurate, and can automatically return to the position after misoperation, horizontal and vertical speeds are adjustable; XY axis rotation function and inversion function

Horizontal direction 540° infinite rotation (16 bit precision scanning), vertical direction 270° infinite rotation (16 bit precision scanning)

Control mode: 25 (simplified) 33 (standard) 2 channel control modes, standard DMX512 protocol, RDM protocol

Control interface: DMX512 interface (3-core/optional 5-core), power cord hand-in-hand socket

Sleep function: Advanced technology is used to realize remote sleep function. When the lamp is disconnected from the signal, it automatically enters the sleep state, making the lamp more stable and safer

Display function: 1.77-inch LCD display, Chinese and English bilingual menu, sensor fault display, temperature display

Cooling system: High-conductivity light aluminum radiator, fan intelligent monitoring technology automatically adjusts the fan speed according to the temperature of the lamp, built-in overheating protection intelligent system/intelligent temperature and noise balance module

Protection level: IP20, optional rain cover protection level up to IP44

Lamp packaging: waterproof and shockproof aviation box or carton

Gross weight: 15.25KG Net weight: 13.20KG

Product size: 51*40*22CM

Packaging size: 56*44*30CM (one pack)
