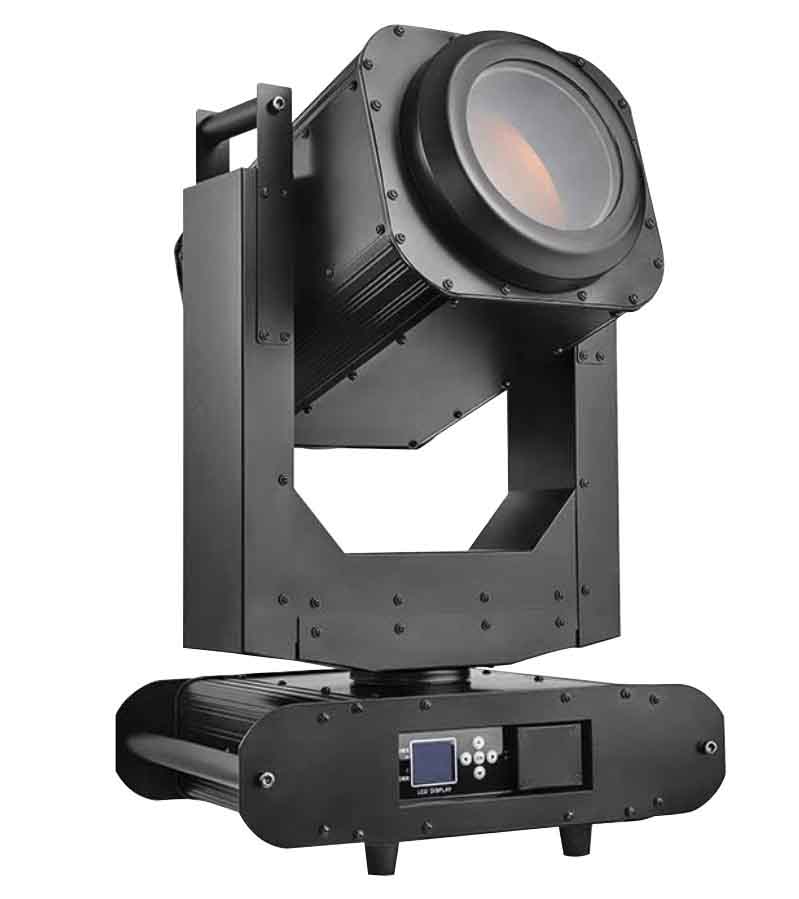

MF-350FSI

350/380W waterproof three-in-one computer light

Product features:

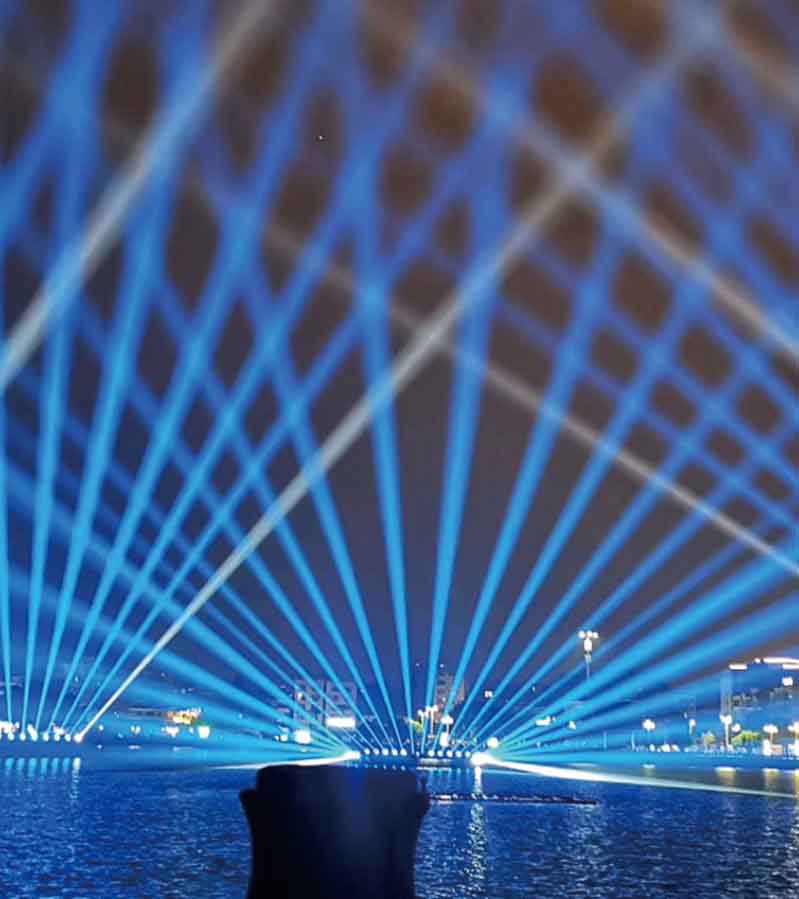

1. Suitable for large-scale mountain shows, cultural and tourism night tour theme parks, building landmarks, performing arts programs, and outdoor performances;

2. Beautiful appearance private model design, double arc design can avoid surface water accumulation and dust accumulation; IP65 waterproof and dustproof;

3. Wide voltage range operation, strong adaptability and high safety, imported color film, rich colors;

4. Imported light source, fully coated optical lens, full beam, sharp, strong penetration.

5. Control diversity: RDM, console, central control, offline programming, master-slave control.

Power supply parameters

Wide voltage: AC90V-235V 50-60Hz

Wide voltage driving power supply: 500W

Light source specifications

Light source system: Youdeng 350W

Color temperature; 7800K

Color effect

Color system: Color disk: 13+colorful rainbow effect

Pattern system: Pattern disk: 13 fixed patterns + 1 white light can be bidirectionally shaken, animation, flow effect

Replaceable pattern disk: 9 glass patterns (LOGO can be customized)

Beam degree: 2°- 60 degrees

Focusing system: Linear electronic focusing

Flash: 0.5-20 times/second, adjustable speed

Motor: XY axis uses a three-phase motor to make the lamp fast and slow speed stable and accurate positioning angle!

Dimming curve: 0%-100% linear dimming, smooth and flicker-free

Control system

Dual channel: 16 channels or 20 channels

Lens diameter: 152mm

Waterproof grade: IP65

Control mode 1: DMX 512, self-propelled, master-slave self-propelled, RDM function, can use large controller to control remote address code.

Lighting parameters

Prism system: 8 prisms and (8+16) prisms (prisms can be configured according to customer requirements).

Display: LCD display, adapt to different installation positions, can rotate 180°

Horizontal and vertical: use high-precision three-phase motor, accurate positioning, smooth operation, automatic positioning correction

Horizontal: 540° rotation, resolution 8/16Bit, with fine adjustment

Vertical: 270° rotation, resolution 8/16Bit, with fine adjustment

Cooling system: physical fan heat method is adopted to quickly solve the internal heat of the machine body, prolong the light source decay time, ensure the service life of the bulb, and design a low-noise cooling system. The fan drive performance is excellent and the noise is extremely low.

Installation method: upright/inverted

Lamp size

Lamp body size: 39*32*70cm

Carton packaging size: 53*48*75

Net weight: 28KG, gross weight 32KG

Masterpiece of craftsmanship: high-end appearance, huge energy, thick light column. The waterproof beam lamp has reached high standards in terms of optics, structure, appearance, etc. It adopts the most advanced technology, high-brightness light source, optical technology and rigorous industrial design to ensure the perfect presentation of lighting design.
