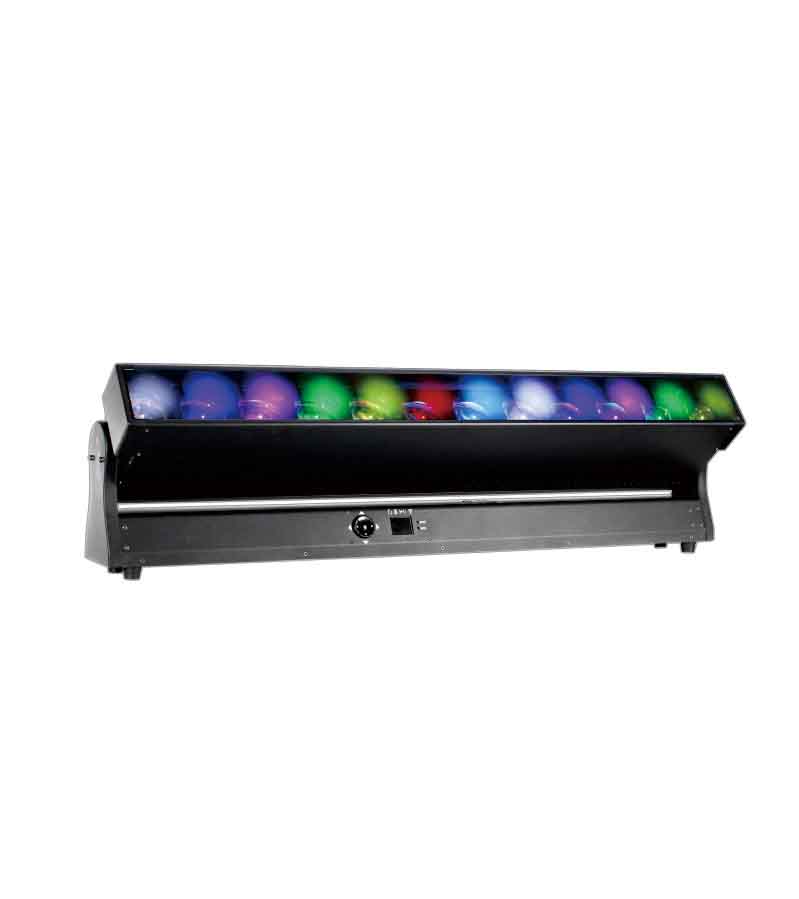

MF-1260FBY

12x60W waterproof focus moving head light

Power supply parameters

Input power: AC100 -240V

Power frequency: 50/60Hz

Power: 680W

Insulator: 5A/250V, ￠5 * 16

Lighting parameters

Waterproof coefficient: IP20

Heat dissipation method: air cooling

Maximum ambient temperature: 45℃

Shell color: black

Lamp beads specifications

Lamp beads specifications: 12*60W 4in1LED

Average life of lamp beads: 50,000 hours

Control system

Number of DMX control channels: 18/56CH

DMX connector: 3 Pin XLR input and output

Power connector: gun control tail input

Operation mode: RDM/master-slave/self-propelled/sound control/DMX512

Horizontal scan: 220o, (16bit precision scan)

Advanced scanning system is faster , temperature, quiet, with automatic error correction reset function

Color effect

Color: RGBW 4in1LED

Lighting angle: 3 -45 °

Dimming: 0 - 100%

Flash: 1 -25Hz

Full color LCD screen with 5 buttons

Dimensions

Product size (LxWxH): 108x13x31.5cm

Net weight: 22kg
