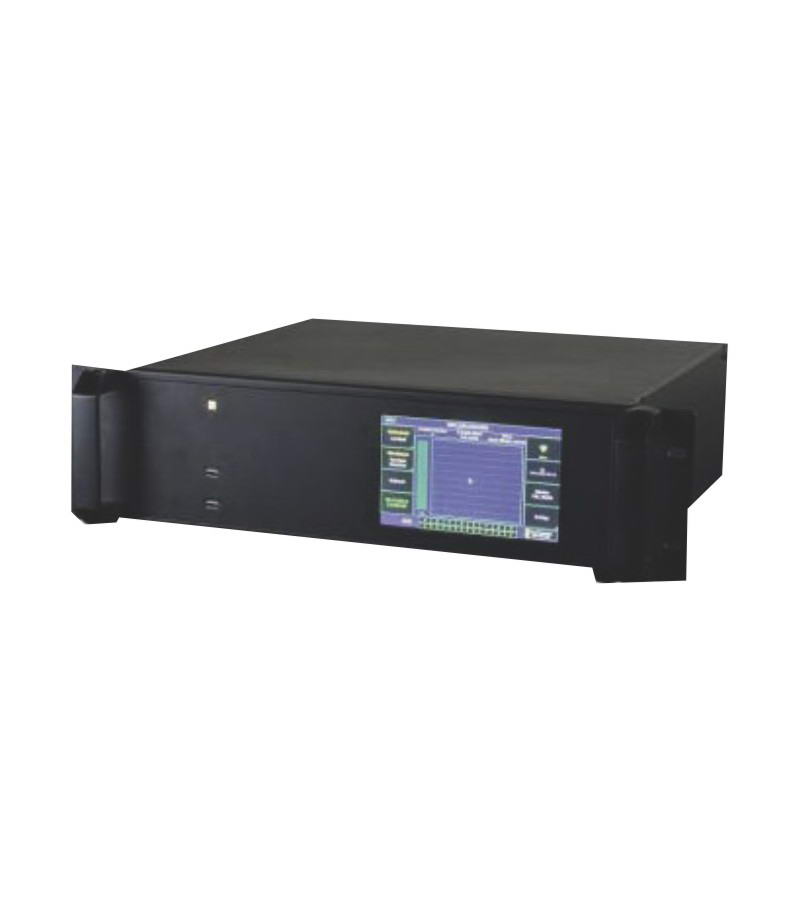

MF-NPU-8

Network Processor (UPU)

The network processor is an important link in the YEL-NET network. It has the same CPU as the console and has powerful network computing capabilities. The network processor can process 4,096 channel parameters in real time at the same time. 8 DMX input and output interfaces can be flexibly configured. The network processor supports various lighting protocols such as DMX512, ART-NET and ACN. In the same network, multiple consoles can share one or more network processors to achieve "redundant backup" of lighting control. The network processor is equipped with a TFT touch screen, which is simple and easy to use. Real-time calculation, with 8 DMX512 output ports, can control up to 4,096 control parameters at the same time

1 built-in touch command screen (7" SVGA)

1 Gigabit Ethernet interface

2 USB2.0 connection interfaces

Support Chinese and English operation interface

Size: 45 * 41 *14CM
