Beam Light
Position:Home >> Products >> Beam Light
Product Details Video Download

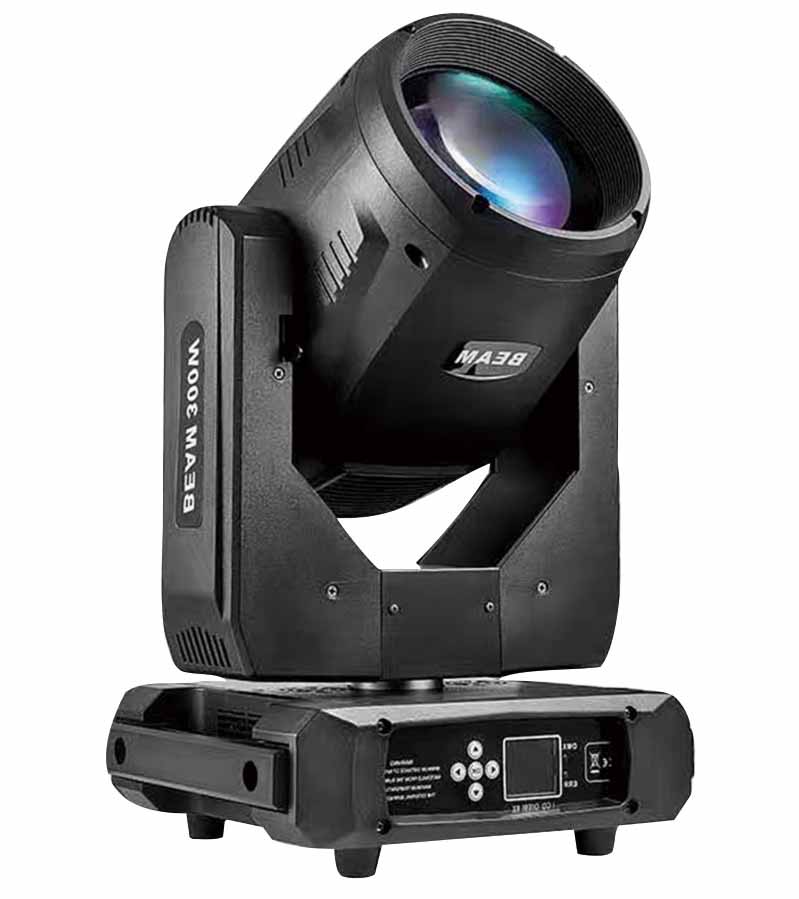

MF-311/330/350BM

311-350 beam light

Input voltage: AC100-240V, 50/60Hz

Bulb: OSRAM 311-350W light source

Average life: 2000H

Total power: 450-550W

Color temperature: 3200K/4500K/6700K color temperature adjustable,

Display: LCD screen with Chinese and English display + buttons (to prevent display screen failure and inability to operate, double insurance)

Color: built-in 1 fixed color disk with 13 bright and beautiful colors + white light, half-color effect, linear color conversion and two-way variable speed rotation rainbow effect.

Fixed pattern: built-in 1 fixed pattern disk with 13 patterns + white, variable speed jitter and two-way flow effect

Prism: two independent rotating prisms, (1 8-prism and one honeycomb 24-prism) The double prism combination can generate 32 sharp and clear beam effects,

With colorful prism effect

Lens: Special anti-reflective coating optical glass lens group 6 layers of coating.

Motor: A total of 12 ultra-quiet motors, the latest technology research and development of high-quiet motors with high-tech drive software, so that each functional motor has a fast response speed and accurate positioning under silent operation, and users can easily achieve fast scene switching during use.

Dimming: 0%-100% mechanical dimming smooth and flicker-free, double-chip strobe 0.5-14 times/second adjustable, turn off the strobe lamp power reduction, energy saving and environmental protection, support strobe macro function (pulsation, synchronous, asynchronous, random)

Beam angle: parallel beam angle: 0-4°

Fog: 0-100% linear fog, with colorful lenses, electronic focusing function.

Positioning: Photoelectric reset system is adopted.

When an accidental misoperation occurs, it can automatically retrieve and reset

XY: Horizontal 540°, resolution 8Bit/16Bit,

Vertical 270°, resolution 8Bit/16Bit

Control channel: 16/20 DMX channels can be switched

Appearance of lamp: High temperature resistant plastic + molded alloy material (using high-strength PA66 raw material with high temperature resistance, flame retardant, anti-aging and wear resistance, light and anti-fall characteristics) Operating temperature: -45°C to 70°C, the bulb contains overheating protection

Other functions: Remote DMX control of the bulb switch function, control console light bulb, extinguishing the bulb, and the power-on light bulb function can be set on the display board. The display can display the use time of the lamp and bulb, and the fan automatic speed regulation function

IP protection level: IP20 Optional rain cover will reach the protection level of IP44

Net weight: 16KG

Packing size: 45X47X60CM
