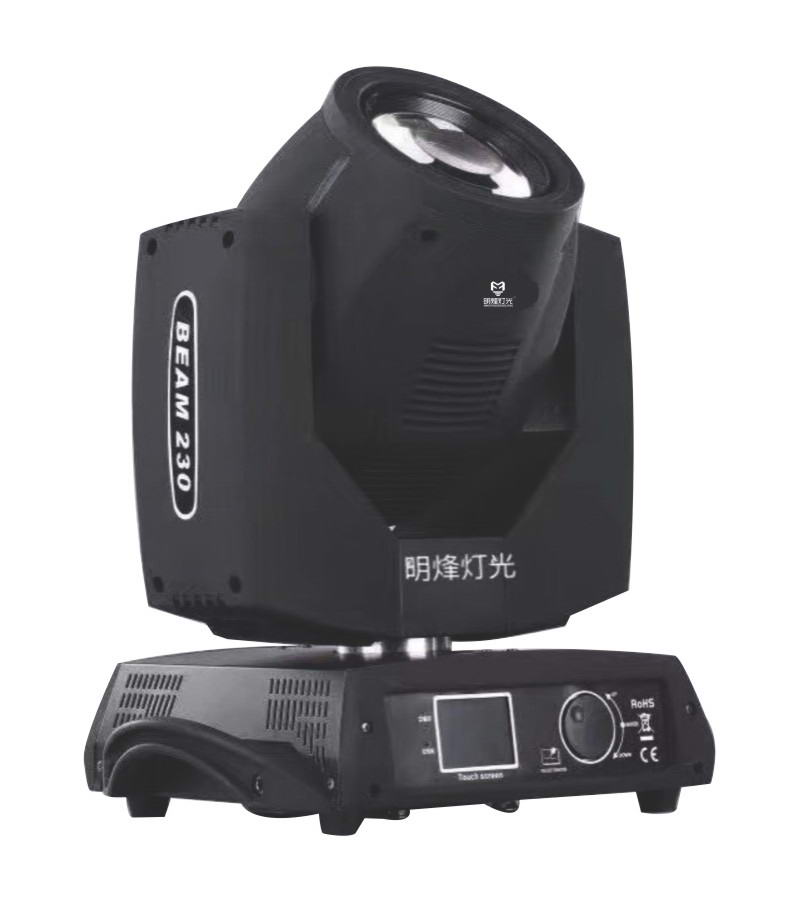

MF-230BM/MF-200BM

Mingfeng 230 beam light (classic model)

Voltage: AC100V-240V 50/60Hz

Bulb: OSRAM 7R 230W (optional 7R YODN bulb)

Bulb power: 230W

Machine power: 300W

Ballast: electronic ballast

Color temperature: 8500K

Average life: 2000H

Color: with 14 colors + white light, rainbow effect

Pattern: with 17 fixed pattern pieces + blank

Prism: 1 rotating 8/16 prism, can rotate in both directions

Soft light effect: adjustable soft light spot angle

Focus: linear focus

Dimming: 0-100% linear adjustment

Beam angle: 0- 2.3°

Strobe: Dual-chip strobe (0.5-9 times/second)

Control mode: DMX16CH

X-axis horizontal: 540°; 8Bit/16Bit

Y-axis vertical: 270°; 8Bit/16Bit

Safety: Horizontal and vertical quick locks facilitate product transportation and maintenance.

IP20 protection level, optional rain cover will

Protection level reaches IP44

Packing size: 440x410x540mm

Air box size: 830x480x720mm

Net weight: 17.5KG

Gross weight: 21.2KG (carton)

Gross weight: 70KG (air box 2 in 1)
